Air heater with low pressure drop for homogeneous heating of air flows

PTC Air Heaters are finned resistor heaters with a large surface area for homogeneous heating of air flows. They achieve a power up to 3kW, depending on the type, and cannot overheat thanks to the PTC effect. Their heating fins in V- or Delta-shape allow for homogeneous heat distribution and low pressure drop. The insulated HRP version comes with an increased resistance to vibration, dirt, and moisture and is suited for difficult environmental conditions.

The application possibilities of PTC Air Heaters are nearly unlimited. Thanks to their modular design, different cross-sections and performance versions can easily be realized. This flexibility combined with matching accessories - such as mounting frames, housings and temperature limiters - allows us to find a suitable solution for each customer. PTC Air Heaters are most commonly used as pre- or post-heaters in air conditioning and ventilation systems (HVAC), but also serve as cabin heaters in special-purpose vehicles or as control cabinet heaters in electrical enclosures.

PTC Air Heaters with V- or Delta-Shaped Fins

PTC Air heaters HRKK

PTC Air heaters HRKK

Data sheet HRKK V

Power up to 3kW

Operating voltage 230V, 400V AC/DC

Switching or cycling of individual heating circuits is possible

V-shaped heating fins (live part)

Optional with mounting frame, temperature limiter

CE, VDE, UL

PTC Air heaters HRKK Delta

PTC

Air heaters

HRKK Delta

Data sheet HRKK Delta

Power up to 2kW

Operating voltage 230V AC/DC

Switching or cycling of individual heating circuits is possible

Delta-shaped heating fins (live part)

Low pressure drop

Available in the standard sizes S, M, L

Optional with mounting frame, temperature limiter

CE

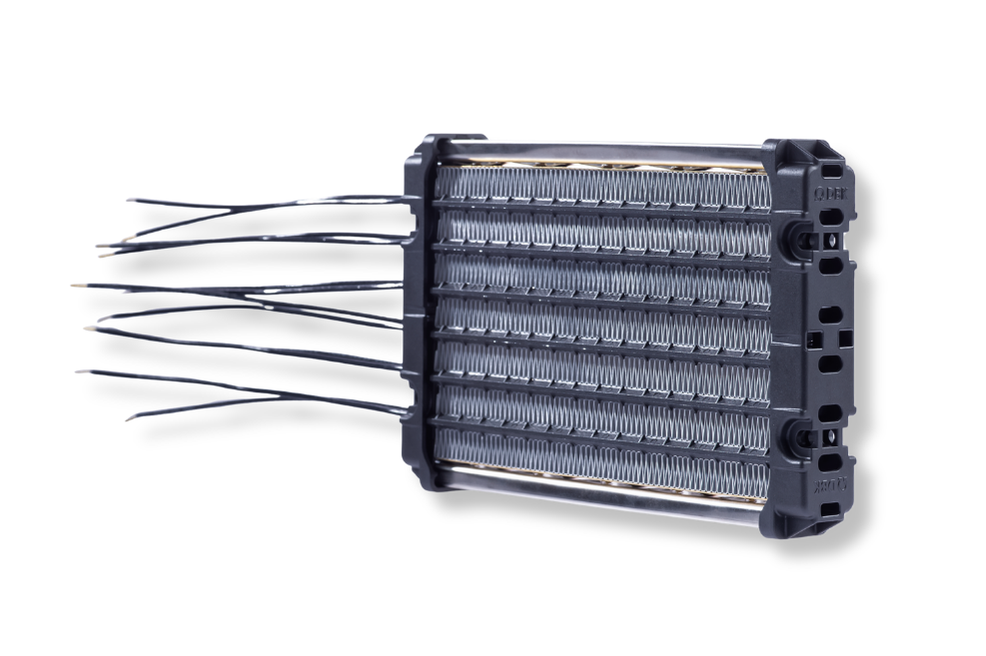

Insulated PTC Air heaters HRP

Insulated PTC

Air heaters

HRP

Data sheet HRP

Power up to 3kW

Operating voltage 115V/230V, AC/DC

Power control of heating element is possible via PWM

V- or Delta-shaped heating fins (electrically insulated)

Low pressure drop

Encapsulated PTC heating elements

Available in the standard sizes S, M, L

Covering rail with 4,5mm T-slot

Homogeneous load with three-phase connection

Optionally with frame, temperature limiter, mounting slider

custom PTC

Air heaters

Can’t find what you’re looking for? No problem - custom solutions are our specialty!




PTC Pre- & Post-Heater for Air Ducts

PTC Pre-Heater Module

Data sheet PTC Preheater

Power up to 2,2kW

Voltage 220 - 240V AC/DC

Low pressure drop thanks to patented delta-shaped fins

High safety and energy efficiency thanks to the PTC effect

Compact frame with touch protection for easy integration into ventilation systems

Easy power supply connection with 2x0,5mm² wire

Integrated temperature limiter (tripping temperature 80°C)

Flammability: UL94V-0

CE

PTC Duct Heater

Data sheet Duct Heater

Power up to 1,2kW

Voltage 230V AC

Electrically insulated, encapsulated heating elements

Available in the standard diameters DN125, DN160 (coming soon)

Available with power control via analoge or PWM signal (standby power 0.5W) or with three fixed power levels and temperature limiter, connectable via terminal block

Heating element and electronics resp. terminal block integrated in plastic housing

CE

custom Pre-heaters for HVAC systems

Discover our custom pre- and post-heating solutions for centralized and decentralized ventilation systems with heat recovery
