HRPF are next-generation electrically insulated PTC air heaters that enable uniform heating of airflows with flexible power control. Thanks to encapsulated heating elements, they are resistant to moisture and dirt and achieve a high level of operational safety and energy efficiency through the PTC effect.
Power up to 3 kW
Voltage 230 V or 400–600 V
Individually switchable heating circuits for flexible power adjustment
High safety and energy efficiency thanks to the PTC effect

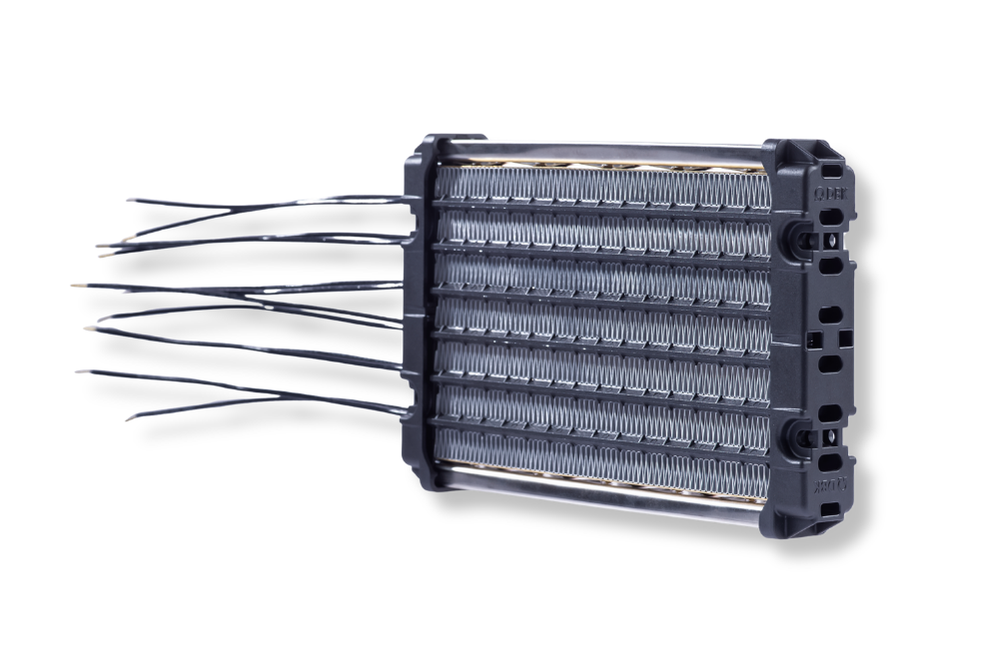

Insulated PTC Air Heater (HRP)
Insulated PTC Air Heaters of the HRPF series are powerful heaters for uniform and efficient heating of airflows.. Building on the proven HRP series, the new HRPF generation has been designed to improve controllability, simplify integration and enhance operational reliability.
A key advantage is the flexible control of the heating circuits: they can be operated independently and switched on individually as required. This allows the heating output to be precisely adapted to different operating conditions, such as varying airflow rates or uneven airflow within a system.
The encapsulated PTC heating elements are resistant to moisture and dirt and enable reliable use even under demanding ambient conditions. The insulation complies with protection class II and also allows operation without a protective earth connection, reducing installation effort and simplifying integration.
The revised design reduces thermal mass, enabling faster heating and cooling, which is particularly beneficial in dynamic applications such as vehicles and mobile systems.
In addition, the HRPF series offers a wide range of variants and a modular design, allowing the heater assemblies to be optimally adapted to different requirements.
PTC Air Heaters – Safe and Efficient
PTC heater assemblies use the physical PTC effect, which allows the output of the heating elements to self-regulate. The heating elements are self-limiting and do not exceed a defined maximum temperature, ensuring a high level of operational safety.
As a result, they combine reliable operation with energy efficiency - without additional safety or control circuits.
FEATURES
Power up to 3kW per heater
Suitable for voltages of 230 V or 400–600 V (AC/DC), other voltages on request
Electrically insulated, encapsulated PTC heating elements for uniform heating of airflows
Individually switchable heating circuits for flexible and precise power control
Uniform heating of airflows even under varying operating conditions
Fast heat-up response due to reduced thermal mass
Long service life and stable performance over time
Resistant to moisture and dirt
No grounding required thanks to protection class II
Modular design enabling a wide range of configurations
Electronic controller available on request
Available Versions

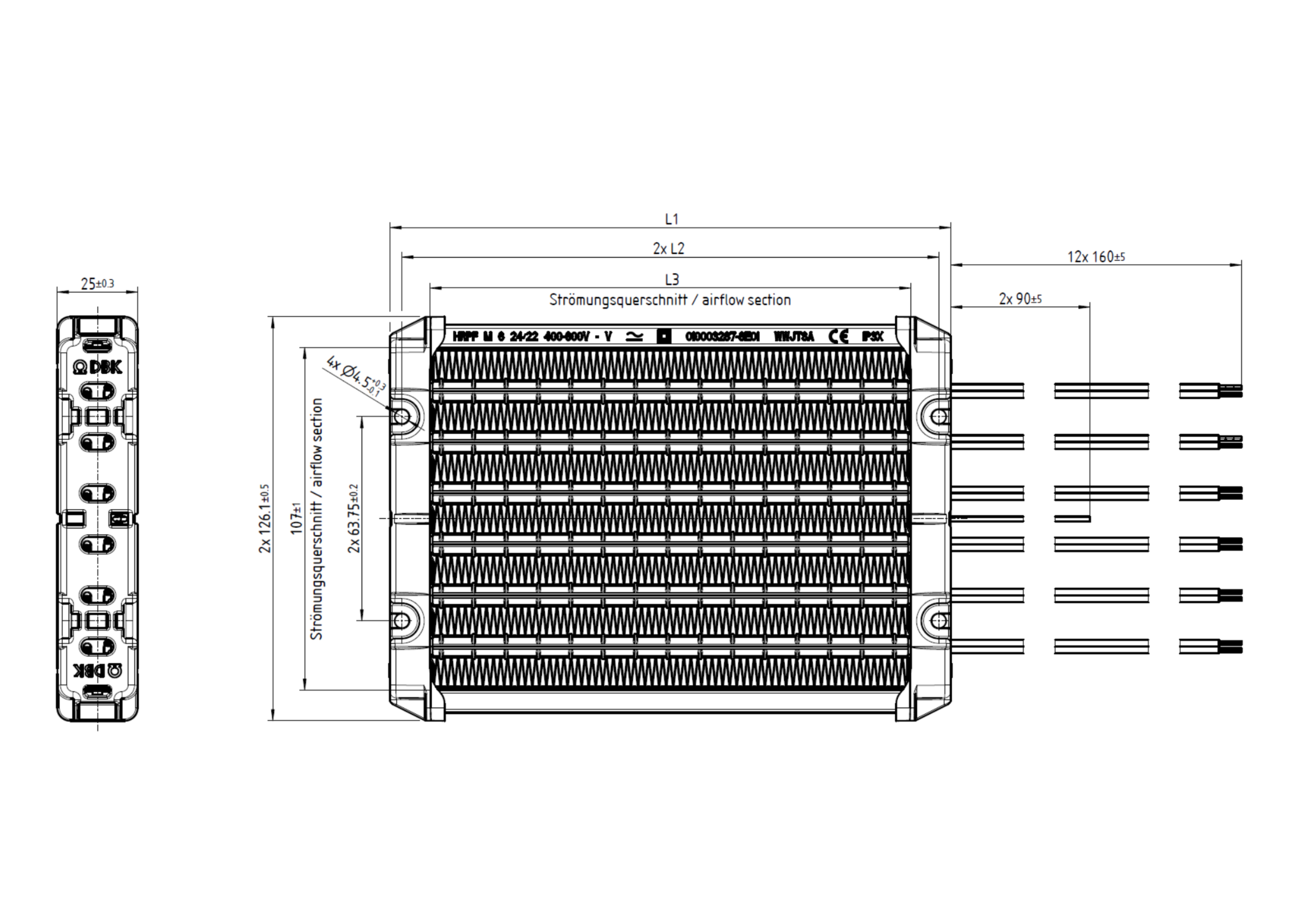

The HRPF series is currently available in sizes M and L with V-fin geometry. Additional sizes, voltages and fin designs are currently under development.

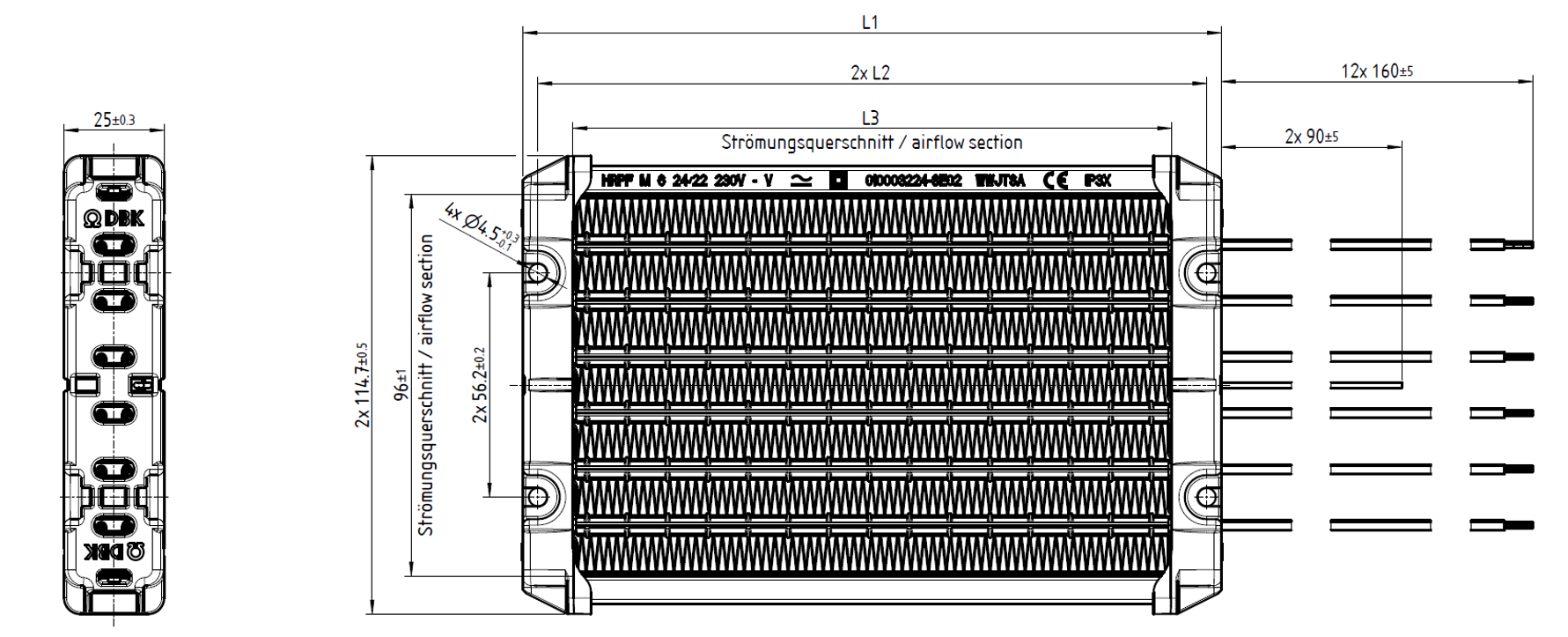

Technical data
| Insulated PTC Air Heater with Mounting Frame | HRPF M | HRPF L |
|---|---|---|
| Fin design | V | |
| Operating Voltage (V) | 230 | |
| Heating Capacity (20 °C, 300 m³/h) +5 / -10 % | 1900 | 2750 |
| Max. Inrush Current at 230 V (A) | 19 | 30 |
| Pressure Drop at 20 °C, 200 m³/h (Pa) | 62 | 35 |
| Heater Length (mm) | 175 | 231 |
| Width (mm) | 114,6 | |
| Heating Circuits | 6 | |
| Standard Lead Length (mm) | 160 | |
FURTHER SOLUTIONS
Can’t find what you’re looking for? No problem - custom solutions are our specialty! Learn more
Optional
Temperature limiter- signal transmitter
Application fields
Insulated PTC Air Heaters HRPF are used in the railway, special-purpose vehicle and HVAC applications.
Typical applications include:
Cabin heating in vehicles, heating solutions for railway applications, cockpit heaters, control cabinet heating, air drying and dehumidification, as well as pre-heating and reheating for building HVAC systems and ventilation systems with heat recovery (low-energy buildings).
Thanks to our modular system, the heater assemblies can be flexibly adapted to different requirements. The specific application should be coordinated in advance - we will be pleased to advise you individually.
